pttools.models.bag
Bag model
Classes
- class pttools.models.bag.BagModel(V_s=AnalyticModel.DEFAULT_V_S, V_b=AnalyticModel.DEFAULT_V_B, a_s=None, a_b=None, g_s=None, g_b=None, T_min=None, T_max=None, alpha_n_min=None, name=None, label_latex=None, label_unicode=None, allow_invalid=False, auto_potential=False, log_info=True)
Bases:

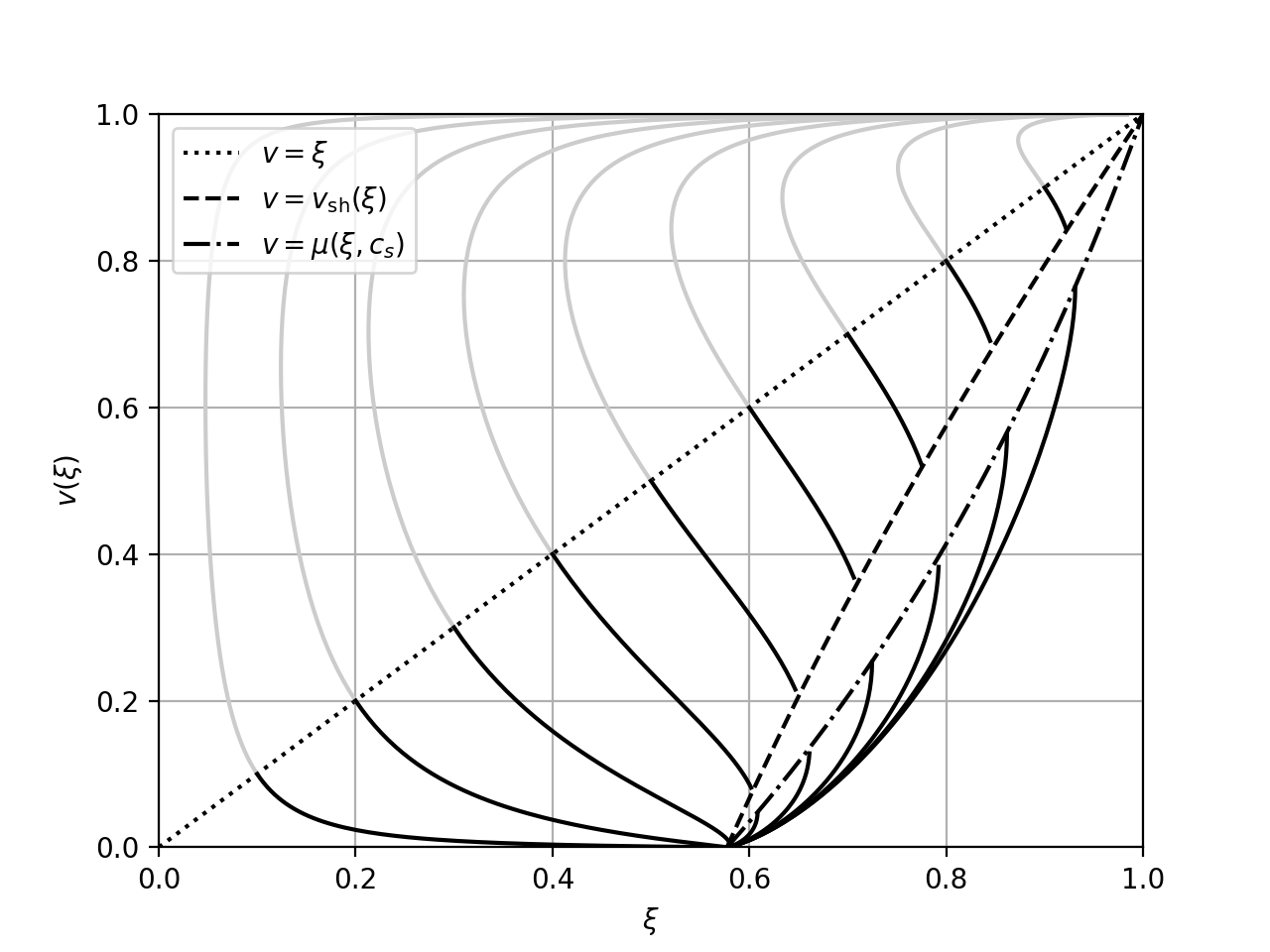

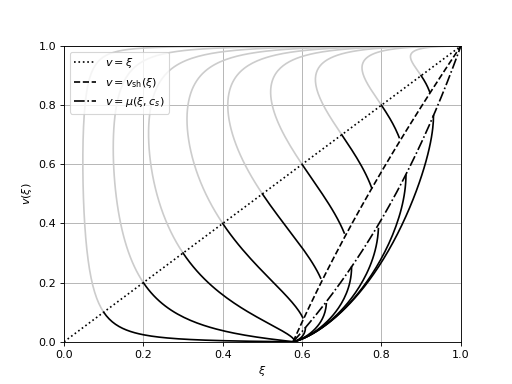

AnalyticModelBag equation of state. This is one of the simplest equations of state for a relativistic plasma. Each integration corresponds to a line on the figure below (fig. 9 of Hindmarsh et al., 2019).
(
Source code,png,hires.png,pdf)
- Parameters:
V_s (float)
V_b (float)
a_s (float)
a_b (float)
g_s (float)
g_b (float)
T_min (float)
T_max (float)
alpha_n_min (float)
name (str)
label_latex (str)
label_unicode (str)
allow_invalid (bool)
auto_potential (bool)
log_info (bool)
- DEFAULT_LABEL_LATEX: str = 'Bag model'
- DEFAULT_LABEL_UNICODE: str = 'Bag model'
- DEFAULT_NAME: str = 'bag'
- TEMPERATURE_IS_PHYSICAL: bool = False
Whether the temperature is in proper physics units
- alpha_n(wn, error_on_invalid=True, nan_on_invalid=True, log_invalid=True)
Transition strength parameter \(\alpha_+\), Hindmarsh et al., 2021, eq. 7.25.
\[\alpha_+ = \frac{4}{3w_+}(V_s - V_b)\]- Parameters:
wp – \(w_+\), enthalpy ahead of the wall
wm – \(w_-\), enthalpy behind the wall (not used)
error_on_invalid (bool) – raise error for invalid values
nan_on_invalid (bool) – return nan for invalid values
log_invalid (bool) – whether to log invalid values
wn (float | float64 | ndarray)
- Return type:
float | float64 | ndarray
- alpha_n_min_find(w_min=None, w_max=None)
Find \(\text{min} \alpha_n(w)\) for \(w \in ({w}_\text{min}, {w}_\text{max})\)
- Parameters:
w_min (float)
w_max (float)
- Return type:
Tuple[float, float]
- classmethod alpha_n_min_find_params(alpha_n_min_target, a_s_default=None, a_b=1, V_s=None, V_b=0, safety_factor_alpha=None)
Find the model parameters that allow the given \(\alpha_{n,\text{min,target}}\)
- Parameters:
alpha_n_min_target (float)
a_s_default (float)
a_b (float)
V_s (float)
V_b (float)
safety_factor_alpha (float)
- Return type:
Tuple[float, float, float, float]
- alpha_plus(wp, wm, vp_tilde=None, sol_type=None, error_on_invalid=True, nan_on_invalid=True, log_invalid=True)
Transition strength parameter \(\alpha_+\), Hindmarsh et al., 2021, eq. 7.25.
\[\alpha_+ = \frac{4}{3w_+}(V_s - V_b)\]- Parameters:
wp (float | float64 | ndarray) – \(w_+\), enthalpy ahead of the wall
wm (float | float64 | ndarray) – \(w_-\), enthalpy behind the wall (not used)
error_on_invalid (bool) – raise error for invalid values
nan_on_invalid (bool) – return nan for invalid values
log_invalid (bool) – whether to log invalid values
vp_tilde (float)
sol_type (SolutionType)
- Return type:
float | float64 | ndarray
- alpha_theta_bar_n(wn, error_on_invalid=True, nan_on_invalid=True, log_invalid=True)
Transition strength parameter, Giese et al., 2021, eq. 13
\[\alpha_{\bar{\theta}+} = \frac{D \bar{\theta}(T_n)}{3 w_n}\]
- alpha_theta_bar_plus(wp, error_on_invalid=True, nan_on_invalid=True, log_invalid=True)
Transition strength parameter, Giese et al., 2021, eq. 9
\[\alpha_{\bar{\theta}+} = \frac{D \bar{\theta}(T_+)}{3 w_+}\]
- critical_temp(**kwargs)
Critical temperature for the bag model
\[T_{cr} = \sqrt[4]{\frac{V_s - V_b}{a_s - a_b}}\]Note that Giese et al., 2020 p. 6 is using a different convention.- Return type:
float
- static cs2(w=None, phase=None)
Sound speed squared, \(c_s^2=\frac{1}{3}\). Hindmarsh et al., 2021, p. 37, Relativistic hydrodynamics, Rezzolla, Zanotti, 2013, eq. 2.207
- cs2_max(w_max, phase, w_min=0, allow_fail=False, **kwargs)
- Parameters:
w_max (float)
phase (Phase)
w_min (float)
allow_fail (bool)
- Return type:
Tuple[float, float]
- cs2_min(w_max, phase, w_min=0, allow_fail=False, **kwargs)
- Parameters:
w_max (float)
phase (Phase)
w_min (float)
allow_fail (bool)
- Return type:
Tuple[float, float]
- static cs2_neg(w=None, phase=None)
Speed of sound squared with a minus sign. This is needed for finding the maximum of cs2.
- static cs2_temp(temp, phase)
- delta_theta(wp, wm, error_on_invalid=True, nan_on_invalid=True, log_invalid=True)
- df_dtau_ptr()
- Return type:
(float64, float64*, float64*, float64*) -> none*
- e_temp(temp, phase)
Energy density as a function of temperature, Giese et al., 2021 eq. 15, Borsanyi et al., 2016, eq. S12 The convention for \(a_s\) and \(a_b\) is that of Hindmarsh et al., 2021, eq. 7.33.
- p_temp(temp, phase)
Pressure \(p(T,\phi)\), Hindmarsh et al., 2021, eq. 5.14, 7.1, 7.33, Giese et al., 2021, eq. 18
\[p_s = a_s T^4\]\[p_b = a_b T^4\]The convention for \(a_s\) and \(a_b\) is that of Hindmarsh et al., 2021 eq. 7.33.
- params_str()
Model parameters as a string
- Return type:
str
- s_temp(temp, phase)
Entropy density \(s=\frac{dp}{dT}\)
\[s_s = 4 a_s T^3\]\[s_b = 4 a_b T^3\]Derived from Hindmarsh et al., 2021 eq. 7.33.
- solution_type(v_wall, alpha_n, wn=None, wn_guess=None, wm_guess=None)
- Parameters:
v_wall (float)
alpha_n (float)
wn (float)
wn_guess (float)
wm_guess (float)
- Return type:
- temp(w, phase)
Temperature \(T(w,\phi)\). Inverted from
\[T(w) = \sqrt[4]{\frac{w}{4a(\phi)}}\]
- theta(w, phase)
Trace anomaly $ heta$
For the bag model the trace anomaly $ heta$ does not depend on the enthalpy.
- static v_shock(xi)
Velocity at the shock, Hindmarsh et al., 2019 eq. B.17
\[v_\text{sh}(\xi) = \frac{3\xi^22 - 1}{2\xi}\]
- w(temp, phase)
Enthalpy \(w(T)\)
\[w(T) = 4a(\phi)T^4\]
- static w_shock(xi, w_n)
Enthalpy at the shock, Hindmarsh et al., 2019 eq. B.18
\[w_\text{sh}(\xi) = w_n \frac{9\xi^2 - 1}{3(1-\xi^2)}\]
- wn(alpha_n, wn_guess=1, analytical=True, theta_bar=False, error_on_invalid=True, nan_on_invalid=True, log_invalid=True)
Enthalpy at nucleation temperature
\[w_n = \frac{4}{3} \frac{V_s - V_b}{\alpha_n}\]This can be derived from the equations for \(\theta\) and \(\alpha_n\).
Functions
- pttools.models.bag.cs2_bag(w=None, phase=None)
Sound speed squared, \(c_s^2=\frac{1}{3}\). Hindmarsh et al., 2021, p. 37, Relativistic hydrodynamics, Rezzolla, Zanotti, 2013, eq. 2.207
