Chapman-Jouguet speed

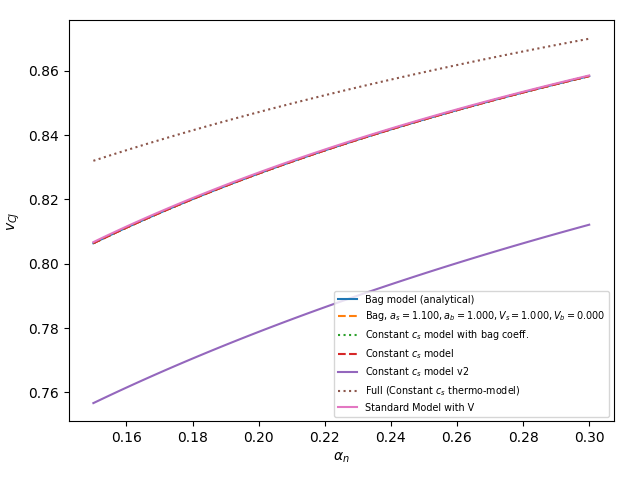

Plot \(v_{CJ} (\alpha_n)\)

/home/docs/checkouts/readthedocs.org/user_builds/pttools/checkouts/main/pttools/models/full.py:138: RuntimeWarning:

invalid value encountered in log10

/home/docs/checkouts/readthedocs.org/user_builds/pttools/checkouts/main/pttools/models/full.py:140: RuntimeWarning:

invalid value encountered in log10

/home/docs/checkouts/readthedocs.org/user_builds/pttools/checkouts/main/pttools/bubble/boundary.py:518: RuntimeWarning:

invalid value encountered in sqrt

/home/docs/checkouts/readthedocs.org/user_builds/pttools/checkouts/main/pttools/models/full.py:138: RuntimeWarning:

invalid value encountered in log10

/home/docs/checkouts/readthedocs.org/user_builds/pttools/checkouts/main/pttools/models/full.py:140: RuntimeWarning:

invalid value encountered in log10

import numpy as np

from examples import utils
from pttools import bubble, models
from pttools.analysis.plot_chapman_jouguet import ChapmanJouguetPlot


def main() -> ChapmanJouguetPlot:
    plot = ChapmanJouguetPlot(alpha_n=np.linspace(0.15, 0.3, 100))

    plot.add(models.BagModel(a_s=1.1, a_b=1, V_s=1), analytical=False, label="Bag model (analytical)")
    plot.add(models.BagModel(a_s=1.1, a_b=1, V_s=1), ls="--")
    plot.add(
        models.ConstCSModel(a_s=1.1, a_b=1, css2=1/3, csb2=1/3, V_s=1),
        label="Constant $c_s$ model with bag coeff.",
        ls=":"
    )
    # Todo: adjust the parameters so that the models have valid critical temperatures
    plot.add(models.ConstCSModel(a_s=1.1, a_b=1, css2=0.25, csb2=1/3, V_s=1), label="Constant $c_s$ model", ls="--")
    plot.add(models.ConstCSModel(a_s=1.1, a_b=1, css2=1/3, csb2=0.25, V_s=1, allow_invalid=True), label="Constant $c_s$ model v2", ls="-")
    plot.add(
        models.FullModel(thermo=models.ConstCSThermoModel(a_s=1.1, a_b=1, css2=1/3, csb2=0.25, V_s=1, allow_invalid=True), allow_invalid=True), ls=":"
    )
    plot.add(
        models.FullModel(thermo=models.StandardModel(V_s=10), allow_invalid=True),
        label="Standard Model with V"
    )
    plot.process()
    return plot


if __name__ == "__main__":
    plot = main()
    utils.save_and_show(plot.fig, "chapman_jouguet.png")

Estimated memory usage: 264 MB
