GW spectra for ConstCSModel
Plot GW spectra for various ConstCSModels
These figures and this table are used in Mika’s M.Sc. thesis.
/home/docs/checkouts/readthedocs.org/user_builds/pttools/checkouts/stable/pttools/models/const_cs.py:681: RuntimeWarning:
invalid value encountered in scalar multiply
Generating the figures took 41.38708474699524 s
import io
import logging
import os.path
import time
import matplotlib.pyplot as plt
import numpy as np
from examples import utils
from pttools.bubble import lorentz
from pttools.bubble.shock import shock_curve
from pttools.models import ConstCSModel
from pttools.omgw0 import Spectrum, omega_ins
from pttools.analysis.parallel import create_spectra
# from pttools.analysis.utils import A3_PAPER_SIZE, A4_PAPER_SIZE
from pttools.speedup.options import IS_READ_THE_DOCS
logger = logging.getLogger(__name__)
def main():
start_time = time.perf_counter()
a_s = 5
a_b = 1
V_s = 1
r_star = 0.1
Tn = 200
# v_walls: np.ndarray = np.array([0.4, 0.7, 0.8])
# v_walls: np.ndarray = np.array([0.4, 0.67, 0.84])
v_walls: np.ndarray = np.array([0.3, 0.68, 0.9])
alpha_ns: np.ndarray = np.array([0.1, 0.2])
alpha_n_min = np.min(alpha_ns)
allow_invalid = False
models = [
ConstCSModel(css2=1/3, csb2=1/3, a_s=a_s, a_b=a_b, V_s=V_s, alpha_n_min=alpha_n_min, allow_invalid=allow_invalid),
ConstCSModel(css2=1/3, csb2=1/4, a_s=a_s, a_b=a_b, V_s=V_s, alpha_n_min=alpha_n_min, allow_invalid=allow_invalid),
ConstCSModel(css2=1/4, csb2=1/3, a_s=a_s, a_b=a_b, V_s=V_s, alpha_n_min=alpha_n_min, allow_invalid=allow_invalid),
ConstCSModel(css2=1/4, csb2=1/4, a_s=a_s, a_b=a_b, V_s=V_s, alpha_n_min=alpha_n_min, allow_invalid=allow_invalid),
]
lss = ["solid", "dashed", "dotted", "dashdot"]
# css2s = {model.css2 for model in models}
csb2s = {model.csb2 for model in models}
alpha_n_mins = np.array([model.alpha_n_min for model in models])
if np.any(alpha_n_mins > alpha_n_min):
msg = f"A model has alpha_n_min > {alpha_n_min}. Please adjust the models. Currently alpha_n_mins={alpha_n_mins}",
logger.error(msg)
raise ValueError(msg)
spectra: np.ndarray = np.zeros((len(models), alpha_ns.size, v_walls.size), dtype=object)
# z = np.logspace(-1, 3, 5000)
for i_model, model in enumerate(models):
spectra[i_model, :, :] = create_spectra(
model=model, v_walls=v_walls, alpha_ns=alpha_ns,
# spectrum_kwargs={"source_duration": 1},
spectrum_kwargs={
"r_star": r_star,
# "z": z
"Tn": Tn,
# "g_star": 100,
# "gs_star": 100
},
# bubble_kwargs={"allow_invalid": False}, allow_bubble_failure=True,
# This fixes a BrokenProcessPool error on Read the Docs
single_thread=IS_READ_THE_DOCS
)
figsize = (12, 10)
fig1: plt.Figure = plt.figure(figsize=figsize)
fig2: plt.Figure = plt.figure(figsize=figsize)
fig3: plt.Figure = plt.figure(figsize=figsize)
axs1: np.ndarray = fig1.subplots(alpha_ns.size, v_walls.size)
axs2: np.ndarray = fig2.subplots(alpha_ns.size, v_walls.size)
axs3: np.ndarray = fig3.subplots(alpha_ns.size, v_walls.size)
snrs = np.zeros((len(alpha_ns), len(v_walls), len(models)))
for i_alpha_n, alpha_n in enumerate(alpha_ns):
for i_v_wall, v_wall in enumerate(v_walls):
ax1: plt.Axes = axs1[i_alpha_n, i_v_wall]
ax2: plt.Axes = axs2[i_alpha_n, i_v_wall]
ax3: plt.Axes = axs3[i_alpha_n, i_v_wall]
for i_model, model in enumerate(models):
spectrum: Spectrum = spectra[i_model, i_alpha_n, i_v_wall]
if spectrum is not None:
label = model.label_latex_params
snr = spectrum.signal_to_noise_ratio_instrument()
snrs[i_alpha_n, i_v_wall, i_model] = snr
label2 = f"{label[:-1]}, SNR={snr:.1f}$"
ls = lss[i_model]

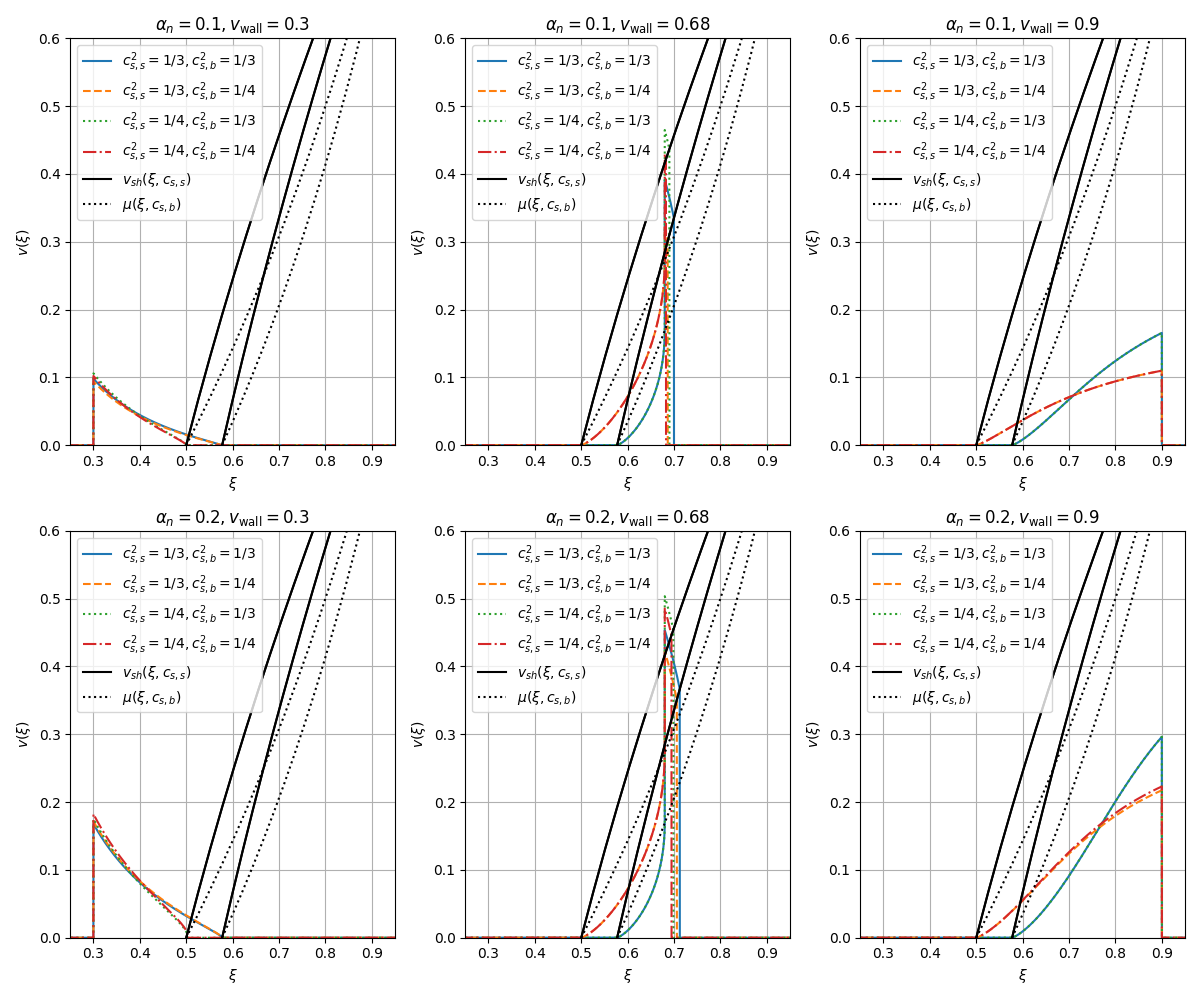

ax1.plot(spectrum.bubble.xi, spectrum.bubble.v, label=label, ls=ls)
ax2.plot(spectrum.y, spectrum.pow_gw, label=label)
ax3.plot(spectrum.f(), spectrum.omgw0(), label=label2)
title = rf"$\alpha_n={alpha_n}, v_\text{{wall}}={v_wall}$"
ax1.set_xlabel(r"$\xi$")
ax1.set_ylabel(r"$v(\xi)$")
ax1.grid()
ax1.set_title(title)

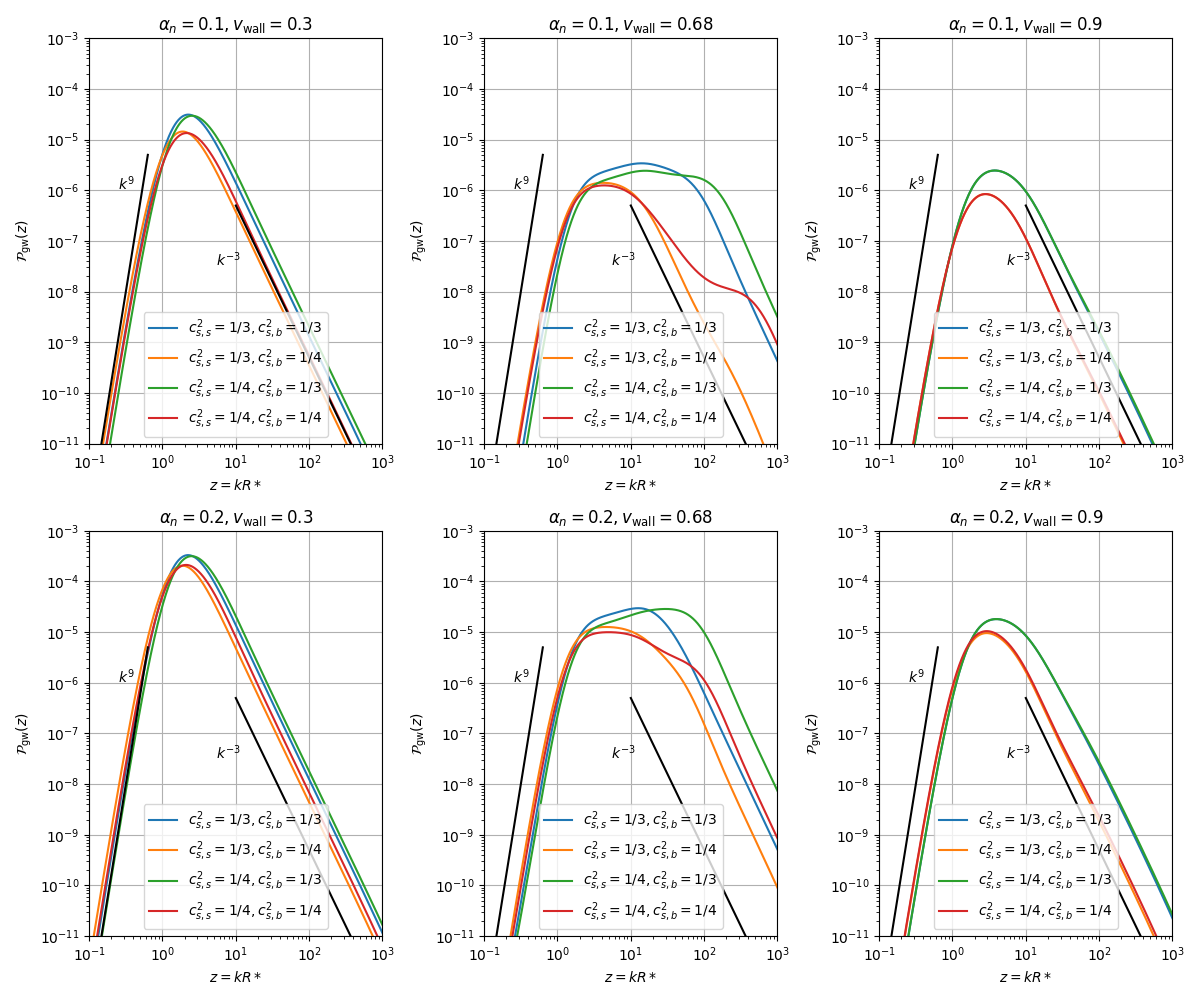

ax2.set_xscale("log")
ax2.set_yscale("log")
ax2.set_xlabel("$z = kR*$")
ax2.set_ylabel(r"$\mathcal{P}_{\text{gw}}(z)$")
ax2.grid()
ax2.set_title(title)

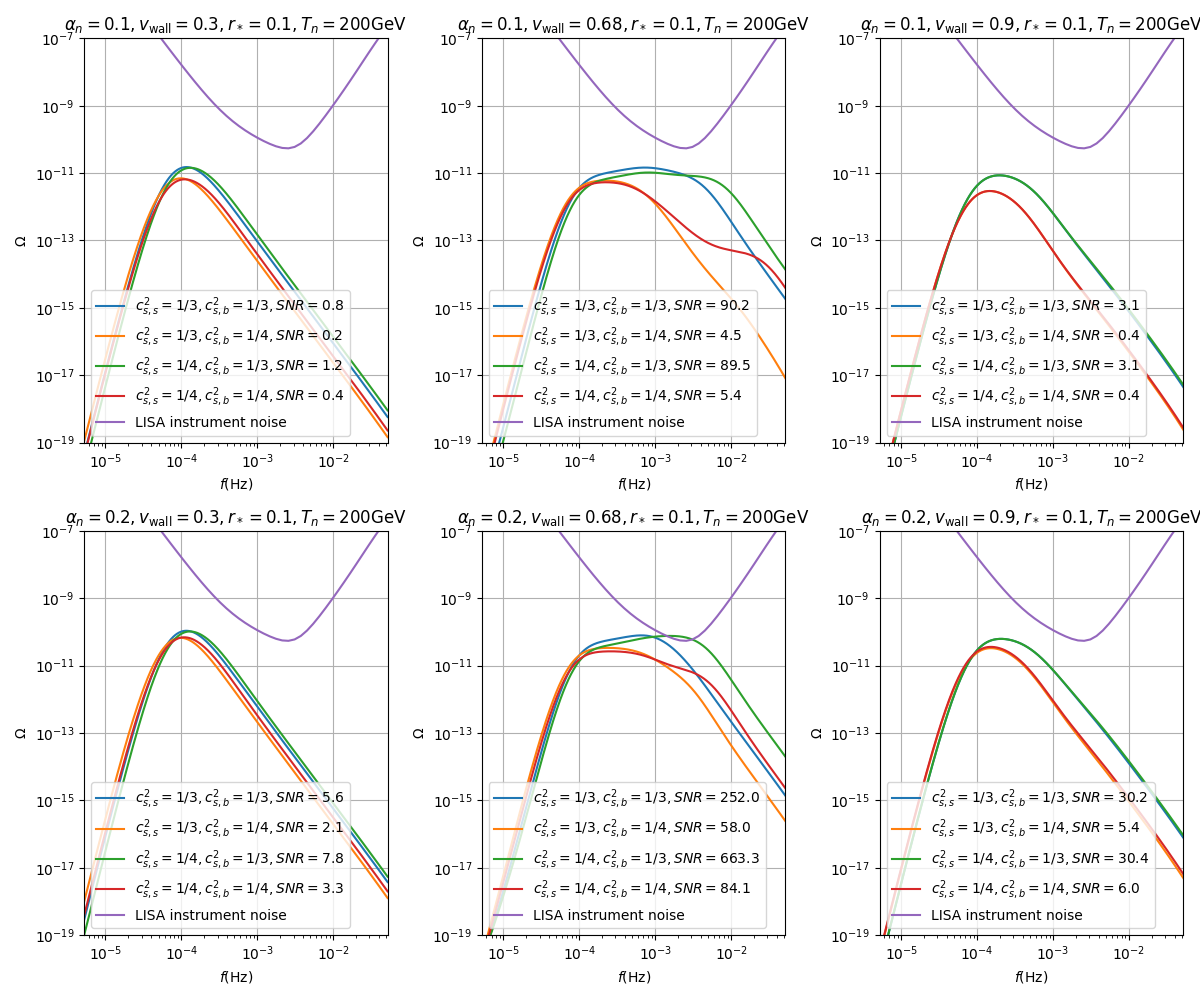

ax3.set_xscale("log")
ax3.set_yscale("log")
ax3.set_xlabel(r"$f(\text{Hz})$")
ax3.set_ylabel(r"$\Omega$")
ax3.grid()
ax3.set_title(title[:-1] + rf", r_*={r_star}, T_n={Tn} \text{{GeV}}$")
file: io.StringIO
with io.StringIO() as file:
file.writelines([
"\\begin{table}\n",
"\\centering\n",
"\\caption{Signal-to-noise ratios of the gravitational wave power spectra of fig \\ref{fig:omgw0}}\n",
"\\begin{tabular}{l|l|l|l}\n",
"Model & \\multicolumn{3}{l}{$\\v_\\text{wall}$} \\\\\n"
"& " + " & ".join([f"{v_wall:.2f}" for v_wall in v_walls]) + "\n",
"\\hline \\\\\n"
])
for i_alpha_n, alpha_n in enumerate(alpha_ns):
for i_model, model in enumerate(models):
file.write(
model.label_latex_params + " & " + \
" & ".join([f"{snr:.1f}" for snr in snrs[i_alpha_n, :, i_model]]))
if i_model < len(models) - 1:
file.write(" \\\\\n")
if i_alpha_n < len(alpha_ns) - 1:
file.write(" \\hline \\\\\n")
else:
file.write(" \\\\\n")
file.writelines([
"\\end{tabular}\n",
"\\label{table:const_cs_gw_snr}\n",
"\\end{table}\n"
])
table = file.getvalue()
# Shock surfaces
n_xi = 20
for i_model, model in enumerate(models):
xi_arr: np.ndarray = np.linspace(model.css, 0.99, n_xi)
for i_alpha_n, alpha_n in enumerate(alpha_ns):
vm_arr = shock_curve(model, alpha_n, xi_arr)
for i_v_wall, v_wall in enumerate(v_walls):
ax: plt.Axes = axs1[i_alpha_n, i_v_wall]
if i_model:
ax.plot(xi_arr, vm_arr, color="k")
else:
ax.plot(xi_arr, vm_arr, color="k", label=r"$v_{sh}(\xi, c_{s,s})$")
# Mu curves
for i_csb2, csb2 in enumerate(csb2s):
csb = np.sqrt(csb2)
xi_mu: np.ndarray = np.linspace(csb, 1, 20)
v_mu = lorentz(xi=xi_mu, v=csb)
for ax in axs1.flat:
if i_csb2:
ax.plot(xi_mu, v_mu, ls=":", c="k")
else:
ax.plot(xi_mu, v_mu, ls=":", c="k", label=r"$\mu(\xi, c_{s,b})$")
# Noise curves
f_min = np.min([spectrum.f(z=spectrum.y[0]) for spectrum in spectra.flat])
f_max = np.max([spectrum.f(z=spectrum.y[-1]) for spectrum in spectra.flat])
f: np.ndarray = np.logspace(np.log10(f_min), np.log10(f_max), num=50)
for i_alpha_n, alpha_n in enumerate(alpha_ns):
for i_v_wall, v_wall in enumerate(v_walls):
ax: plt.Axes = axs3[i_alpha_n, i_v_wall]
# ax.plot(f, omega_noise(f), label="LISA overall noise")
ax.plot(f, omega_ins(f), label="LISA instrument noise")
# Lines
pow_low = 9
k_low = np.logspace(-1, -0.2, 10)
p_low = k_low**pow_low * 10**(-3.5)
for ax in axs2.flat:
ax.plot(k_low, p_low, color="k")
ax.text(0.25, 10**(-6), f"$k^{pow_low}$")
pow_high = -3
k_high = np.logspace(1, 3, 10)
p_high = k_high**pow_high * 10**(-3.3)
for ax in axs2.flat:
ax.plot(k_high, p_high, color="k")
ax.text(5.3, 10**(-7.5), f"$k^{{{pow_high}}}$")
for ax in axs1.flat:
ax.set_xlim(0.25, 0.95)
ax.set_ylim(0, 0.6)
ax.legend(loc="upper left")
for ax in axs2.flat:
ax.set_xlim(spectra[0, 0, 0].y[0], spectra[0, 0, 0].y[-1])
ax.set_ylim(10e-12, 10e-4)
ax.legend(loc="lower center")
for ax in axs3.flat:
ax.set_xlim(f_min, f_max)
ax.set_ylim(1e-19, 1e-7)
ax.legend(loc="lower left")
fig1.tight_layout()
fig2.tight_layout()
fig3.tight_layout()
print(f"Generating the figures took {time.perf_counter() - start_time} s")
return fig1, fig2, fig3, table
if __name__ == "__main__":
figs = main()
utils.save(figs[0], "const_cs_gw_v")
utils.save(figs[1], "const_cs_gw")
utils.save(figs[2], "const_cs_gw_omgw0")
with open(os.path.join(utils.FIG_DIR, "const_cs_gw_snr.tex"), "w") as table_file:
table_file.write(figs[3])
plt.show()
Total running time of the script: (0 minutes 55.221 seconds)
Estimated memory usage: 319 MB
